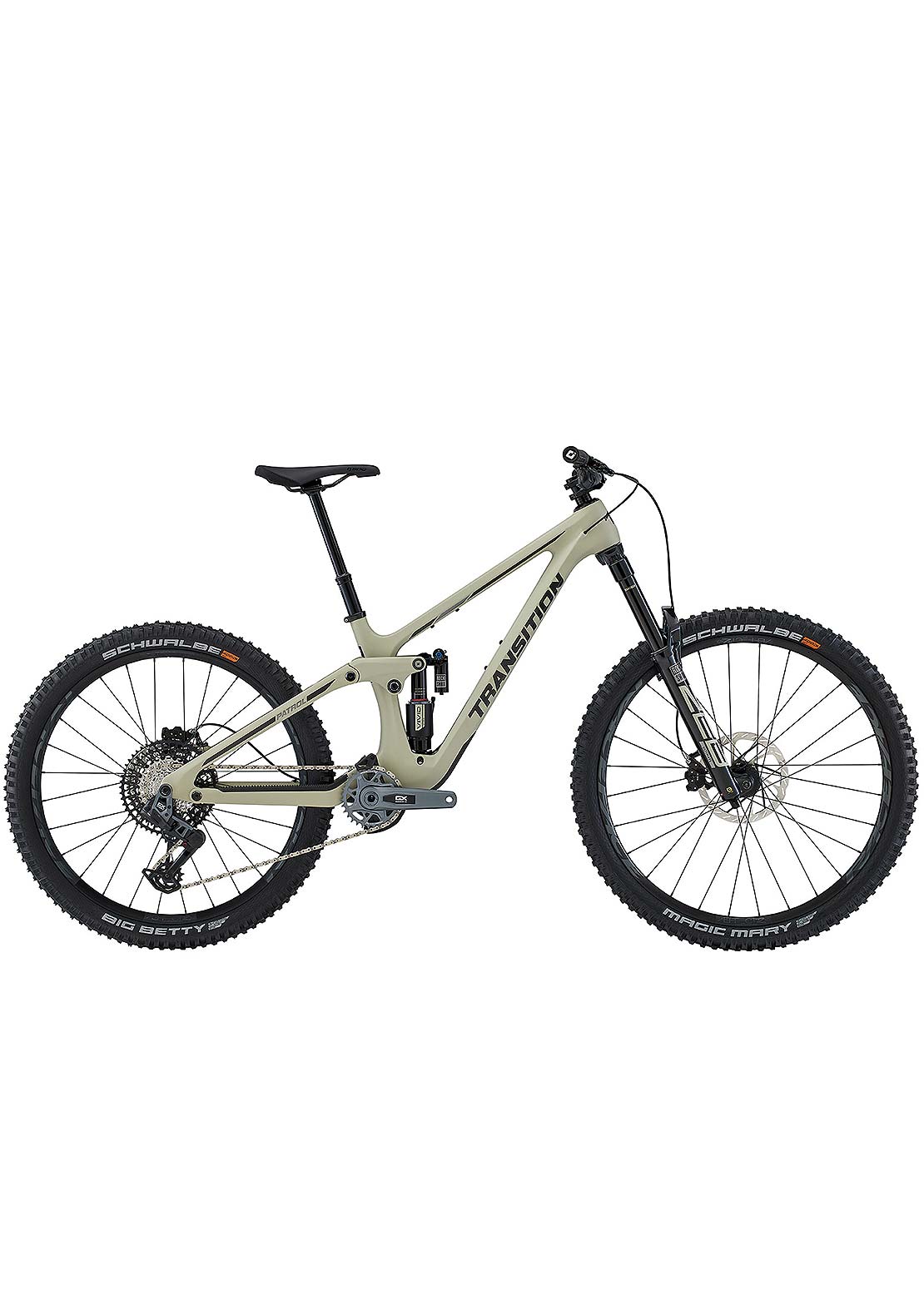

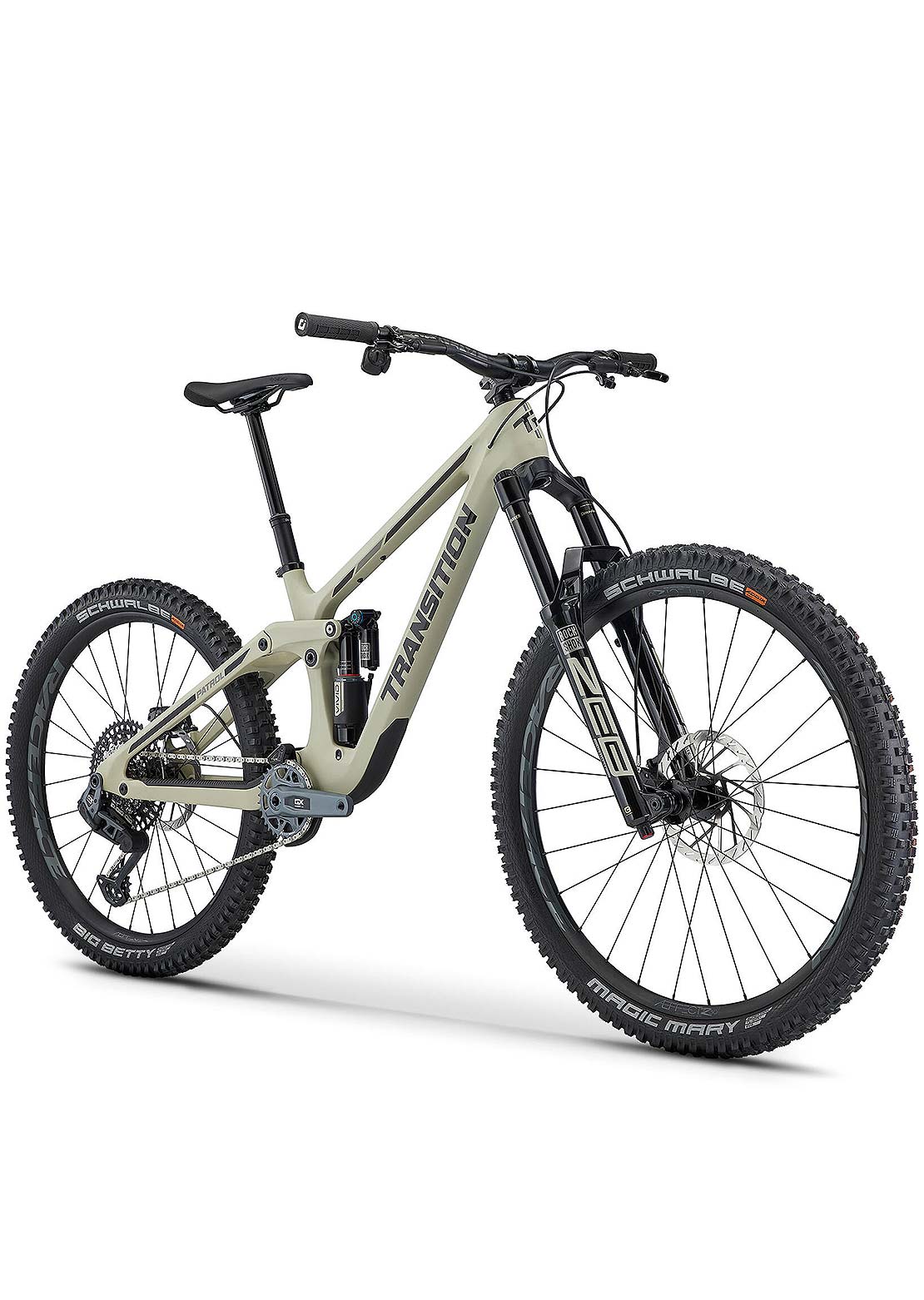

The mixed wheel Patrol has a new haircut but is still down for anything and truly unapologetic when it comes to shredding trail. Being one of the longest standing bikes in our lineup, it was the obvious choice to mix it up. Updated geometry to accommodate the 29" front / 27.5" rear wheels and revised suspension tune might just make you ride all day, and then all night.
Jibbing, jumping, pumping and hooting your way down the trail, the updated Patrol loves to party. From bike parks to your local trails, the Patrol isn't concerned with where you ride but rather how much fun you are having.
SBG ensures the bike maintains low speed agility, front wheel traction, and proper rider weight balance while actually increasing confidence in steep terrain and at high speeds. With SBG, a slacker head tube angle is combined with a reduced offset fork standard, preventing the front wheel from being too far in front of the rider.
This improves front to rear weight distribution on the bike, which is often out of balance on long and slack bikes. One of SBG's greatest benefits is that it creates a confident steering feel that adapts to wheel speed. More stability when going fast, more agility on technical slow speed maneuvering as well as improved traction, control and confidence for any skill level of rider.
|
REAR TRAVEL: |
160mm (Compatible with 170mm) |
|
FRONT TRAVEL: |
160mm (Compatible with 170mm single crown fork or dual crown forks) |
|
WHEEL SIZE: |
29" Front / 27.5" Rear |
|
SIZES: |
SM, MD, LG, XL |
|
FRAME BEARINGS: |
2x 6903, 2x 6902, 4x 6802, 2x 3802, 2x 6900 |
|
FORK AXLE TO CROWN: |
574mm at 160mm |
|
FORK OFFSET: |
44mm |
|
REAR SHOCK SIZE: |
205mm x 60mm (Compatible with 205mm x 65mm) |
|
SHOCK HARDWARE: |
Trunnion Mount Top / 30mm x 8mm Bottom |
|
HEADSET (TOP): |
56mm Zero Stack |
|
HEADSET (BOTTOM): |
56mm Zero Stack |
|
BB SHELL: |
73mm BSA Threaded |
|
CHAINLINE: |
52mm |
|
REAR BRAKE MOUNT: |
180mm Post Mount, Max Rotor Size 223mm |
|
DERAILLEUR HANGER: |
SRAM UDH |
|
REAR AXLE: |
Transition Axle For UDH, 12mm x 148mm Spacing |
|
ISCG TABS: |
ISCG05 |
|
SEATPOST DIAMETER: |
31.6mm |
|
SEAT CLAMP: |
Carbon: 37.0mm Alloy: 34.9mm |
|
MAX SEATPOST |
Carbon: Small 220mm | Medium 250mm | Large 290mm | XL 320mm Alloy: Small 200mm | Medium 230mm | Large 270mm | XL 300mm |
|
MAX CHAINRING SIZE: |
34T Standard Single Ring (Based on 52mm Boost Chainline) |
|
MAX TIRE SIZE: |
27.5 x 2.6 |
|
REAR SHOCK SAG: |
160mm/60mm: 16-20mm (27-33%) 170mm/65mm: 18-22mm (28-34%) |
Geometry
|
SM HIGH/LOW |
MD HIGH/LOW |
LG HIGH/LOW |
XL HIGH/LOW |
|
|
A.REACH |
420 / 415 |
455 / 450 |
480 / 475 |
510 / 505 |
|
B.STACK |
623 / 628 |
623 /628 |
632 / 637 |
641 / 646 |
|
C.EFFECTIVE TOPTUBE LENGTH |
540 / 543 |
575 / 578 |
603 / 606 |
636 / 639 |
|
D.SEATTUBE LENGTH |
360 |
390 |
430 |
460 |
|
E.EFFECTIVE SEATTUBE ANGLE |
79.6° / 79.1° |
78.8° / 78.3° |
78.1° / 77.6° |
77.5° / 77° |
|
SADDLE HEIGHT FOR EFFECTIVE SEATTUBE ANGLE |
600 |
660 |
720 |
780 |
|
ACTUAL SEATTUBE ANGLE |
70.5° / 70° |
70.5° / 70° |
70.5° / 70° |
70.5° / 70° |
|
SEAT TUBE OFFSET AT BOTTOM BRACKET |
100 |
100 |
100 |
100 |
|
F.HEADTUBE LENGTH |
100 |
100 |
110 |
120 |
|
G.HEADTUBE ANGLE |
63.5° / 63° |
63.5° / 63° |
63.5° / 63° |
63.5° / 63° |
|
H.CHAINSTAY LENGTH |
434 / 436 |
434 / 436 |
440 / 442 |
440 / 442 |
|
I.WHEELBASE |
1196 / 1198 |
1231 / 1233 |
1266 / 1268 |
1301 / 1303 |
|
J.BOTTOM BRACKET DROP |
15 / 22 |
15 / 22 |
15 / 22 |
15 / 22 |
|
K.ESTIMATED BOTTOM BRACKET HEIGHT |
340 / 333 |
340 / 333 |
340 / 333 |
340 / 333 |
|
L.STAND OVER HEIGHT |
675 / 685 |
690 / 700 |
705 / 715 |
720 / 730 |
|
M.FORK OFFSET |
44 |
44 |
44 |
44 |
