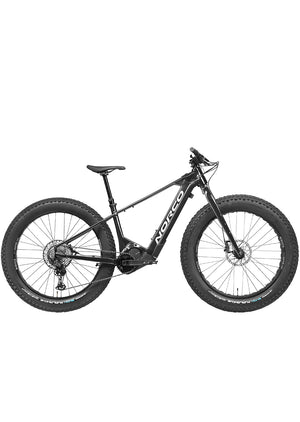

Norco Bigfoot VLT 2 Electric Fat Bike

    Sold out

    Color: Black/Silver
    Black/Silver
    Size: 27.5" - SMALL

    Shipping is not available on this product. Local pick-up only.

    RETURNS

    MADE EASY

    PROUDLY

    CANADIAN

    BEST PRICE

    GUARANTEE

    Description
    Features
    Specs
    Description

    *BATTERY NOT INCLUDED*

    With handling that satisfies the demands of the most discerning rider, the Bigfoot VLT 2 shreds. Heat up your off-road adventure with Gen 3 VLT technology. Shimano’s EP8 drive system combines high torque electric assist with your choice of 540Wh, 720Wh or 900Wh in-tube batteries. (sold separately)

    Features

    MOUNTAIN
    Less Work - Even More Play. The new Bigfoot VLT shreds more than ever before. All new progressive frame design optimized for 27.5” wheels and three big, bold custom VLT battery options. No-compromise cold-weather features combine with Shimano’s STEPS EP8 drive system to make the Bigfoot VLT the electric fat bike that’ll heat up all 4 seasons of off-road adventure.

    CHARGES FORWARD
    Modern MTB handling through treacherous terrain. The Bigfoot VLT’s rider cockpit is optimized for quick, efficient climbing and its progressive geometry makes for confident, stable descents.

    EXTRA
    VLT gives you more of what you love about Fat Biking. Generous standover clearance and thru axles set the Bigfoot VLT’s aluminum frame apart and internally routed cables provide a clean look and keep critical systems working great.

    YEAR-ROUND PERFORMANCE
    Components optimized for the cold – and beyond. Cold-weather optimized Manitou suspension, DOT hydraulic disc brakes and a dropper post that works best when the temps plummet are the kind of details that make a real difference.

    SHIMANO STEPS
    ALL the power you need. Shimano STEPS EP8 drive units give you extra everything and provide the push you need to get through the tough stuff.

    REMOVABLE BATTERY
    Removes and installs in seconds with one tool. Batteries are encased inside the downtube for protection and are easily removed for charging on and off the bike or for easy swaps.

    CHOOSE YOUR JUICE
    Determine how far and how fast you want to ride. Custom select your battery capacity from 540Wh, 720Wh or massive, industry-leading 900Wh depending on how you ride. Lighter weight for speedy laps, mammoth range for epic adventures, or somewhere in between.

    BIG OL’ WHEELS & TIRES
    Fat 27.5 x 4.5” rubber for max grip and cush. 80mm rims and clearance for 4.6” tires put more rubber on the ground. The massive footprints float over snow and sand and soften the blow from gnarly trail features with immense amounts of traction.

    BRAKE CHECK
    With all that go - you have to stop, too. Control the added momentum and take advantage of all the grip offered by the fat tires with hydraulic disc brakes and oversized rotors.

    Specs
    Frameset

    FRAME

    Butted X6 Aluminum

    FORK

    6061 Aluminum



    Drivetrain

    REAR SHIFTER

    Shimano Deore SL-M6100-R

    REAR DERAILLEUR

    Shimano Deore RD-M6100

    FRONT SHIFTER

    N/A

    FRONT DERAILLEUR

    N/A

    CRANKSET

    Praxis Cadet M30, 32T, 170mm (S), 175mm (M, L, XL)

    CASSETTE

    Shimano Deore CS-M6100-12, 10/51T, 12 Speed

    CHAIN

    Shimano Deore CN-M6100



    Brakes

    FRONT BRAKE

    SRAM Code R, Organic Pads

    FRONT BRAKE ROTOR

    SRAM CenterLine, 203mm

    REAR BRAKE

    SRAM Code R, Organic Pads

    REAR BRAKE ROTOR

    SRAM CenterLine, 180mm

    BRAKE LEVERS

    SRAM Code R



    Components

    HANDLEBAR

    Butted 6061 Alloy 760mm, 15mm Rise

    STEM

    6061 Alloy, 50mm Length, 35mm Clamp

    SEATPOST

    TranzX YSI22PLQ Dropper, 34.9mm, 150mm (S), 170mm (M, L), 200mm (XL)

    HEADSET

    FSA No.55R, Sealed Bearing, Tapered

    HEADSET SPACER

    2x10mm - Black

    SADDLE

    SDG Bel-Air V3

    GRIPS

    WTB Waffle, Lock-On

    PEDALS

    Nylon Flat

    SEATPOST CLAMP

    Alloy Nutted



    Wheels

    FRONT HUB

    Bear Pawls Sealed Bearing, 15x150mm, 6 bolt

    REAR HUB

    Bear Pawls Sealed Bearing, 12x197mm, Micro Spline, 6 bolt

    RIMS

    Sun Ringle Mulefut SL V2, 27.5", 32H

    FRONT TIRE

    Vee Snow Avalanche TLR 4.5", 120 TPI, Studdable

    REAR TIRE

    Vee Snow Avalanche TLR 4.5", 120 TPI, Studdable

    REAR HUB SKEWER

    197mm x 12mm TA

    FRONT HUB SKEWER

    150mm x 15mm TA

    SPOKES/NIPPLES

    Stainless 14g, Black


    Geometry

    S

    M

    L

    XL

    27.5"

    27.5"

    27.5"

    27.5"

    Travel (mm front)

    100

    Reach

    410

    440

    470

    500

    Stack

    638

    638

    647

    656

    HTA Head Tube Angle

    67

    OS Fork Offset

    51

    ST Seat Tube Length

    385

    390

    410

    460

    STA Effective Seat Tube Angle

    75

    75.3

    75.7

    76

    RC Rear Centre Length

    460

    BB Bottom Bracket Drop

    65

    BBH Bottom Bracket Height

    329

    HTT Horizontal Top Tube

    581

    607

    635

    664

    WB Wheelbase

    1164

    1194

    1228

    1262

    SOH Standover

    683

    684

    694

    732

    HT Head Tube Length

    110

    110

    120

    130

    Trail

    112

    Stem Length

    50

    Crank Length

    165

    Tire Size

    4.0" – 4.5"

    Water Bottle Compatible

    1 x 750 mL
